TEC-Win Series can achieve dyeing of 100% cotton in minimum liquor ratio 1:4.5 and 100% synthetic fiber in minimum liquor ratio 1:3.5. This machine is designed for dyeing all kinds of fabrics under high temperature.This machine is suitable for dyeing 100% cotton, cotton blend, viscose blend and elastic mix Spinning fabrics. In addition, TEC-Win Series is more suitable for dyeing different types of chemical fiber, pure polyester and polyester blended fabric. TEC-WIN equipped with adjustable fabric block plate, uniform dyeing liquid distribution system, adjustable nozzle, itelligent fabric seam detector and fabric storage tank with teflon tube.
Technical parametersMaximum running speed of fabric lifting roller : 420r/min
Design pressure: 0.44Mpa
Maximum working pressure : 0.4Mpa
Design temperature : 140°C
Maximum working temperature : 135°C
Heating rate: 20°C ~ 130°C about 35 minutes
( Saturated vapor pressure : 0.7Mpa )
Cooling rate: 130°C ~ 80°C about 25 minutes
( Cooling water pressure : 0.3Mpa )
( Cooling water Temperature : 5°C~ 10°C )
Liquor Ratio : can reach 1:4.5

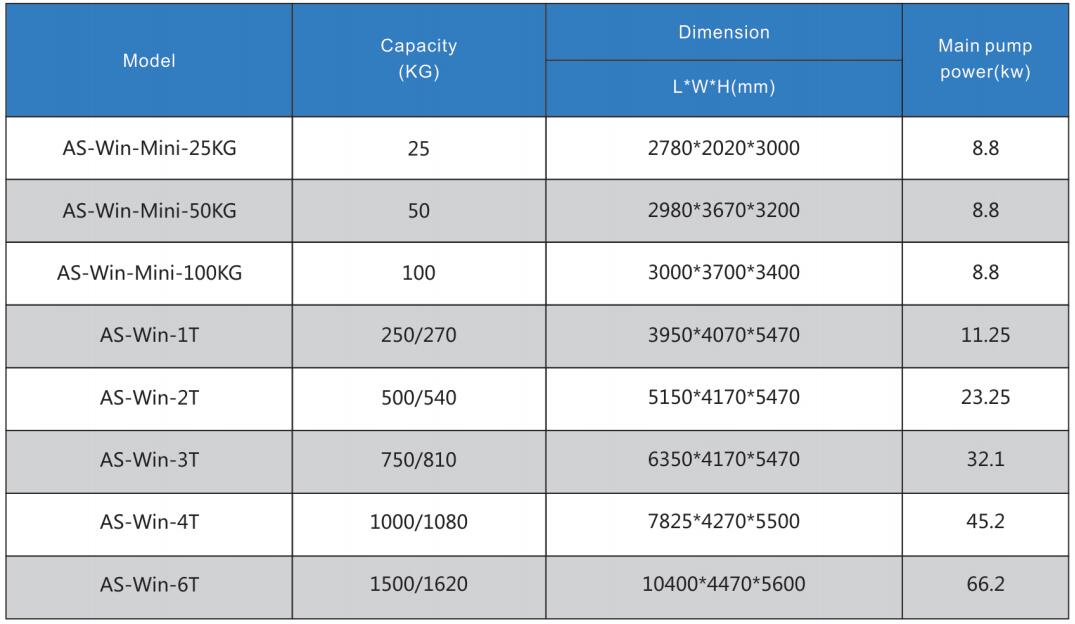

Model & Specifications
Model & Specifications
