TEC-Towel Series is an innovative ultra-small liquor ratio U-flow Dyeing Machine with minimum liquor ratio of 1:5 ~ 1:6 and an innovative dye liquid circulation system and fabric operation system ensure dyeing quality.
Save more than 60% additive, save more than 5%-10% dyestuff
Reduce more than 60% pollution discharge
High dyeing success rates
Save 60% consumption of water power and steam
Technical parameters
Maximum fabric speed :350m/min
Design pressure: 0.44Mpa
Maximum working pressure : 0.4Mpa
Design temperature : 140°C
Maximum working temperature : 135°C
Heating rate: 20°C ~ 130°C about 35 minutes
( Saturated vapor pressure : 0.7Mpa )
Cooling rate: 130°C ~ 80°C about 25 minutes
( Cooling water pressure : 0.3Mpa )
( Cooling water Temperature : 5°C~ 10°C )
Liquor Ratio : can reach 1:5-6

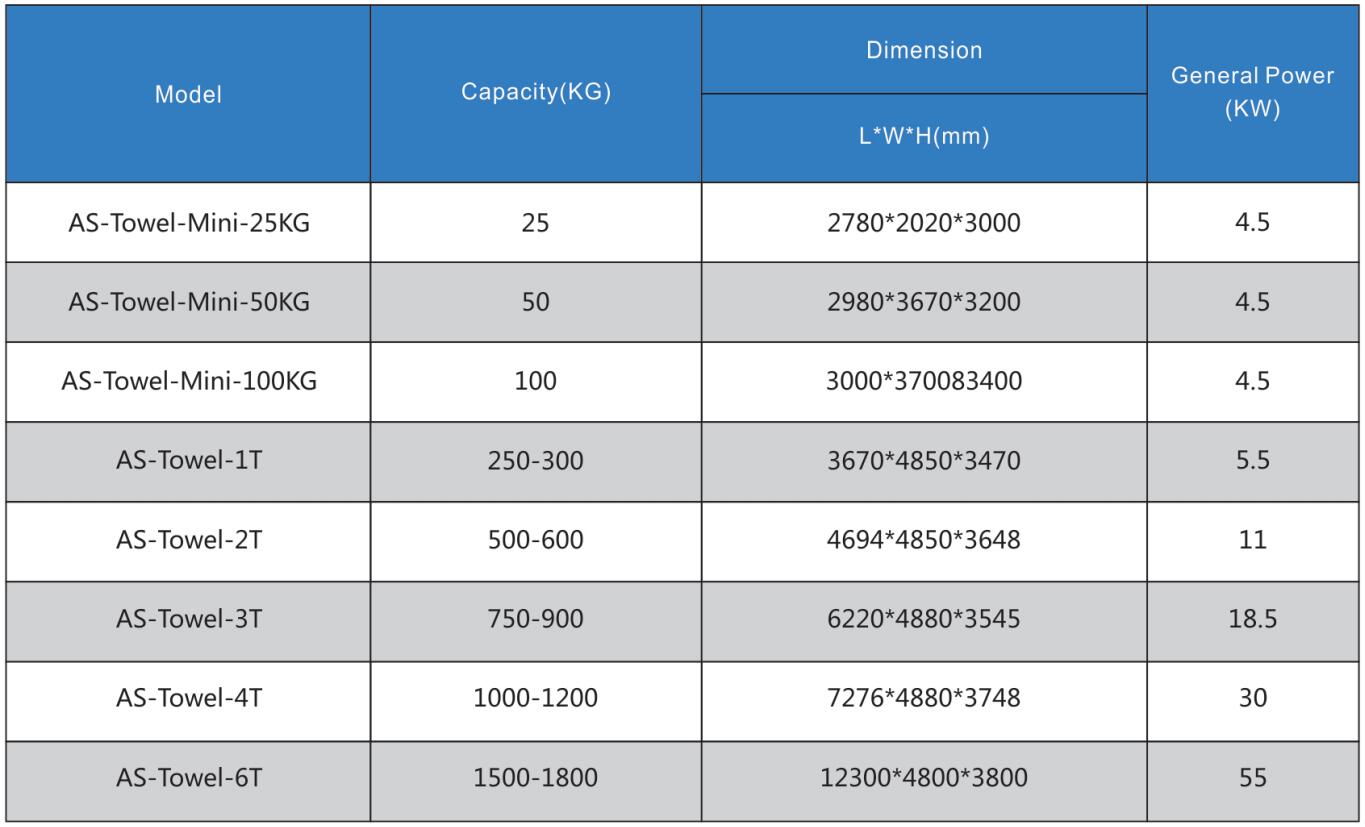

Model & Specifications
