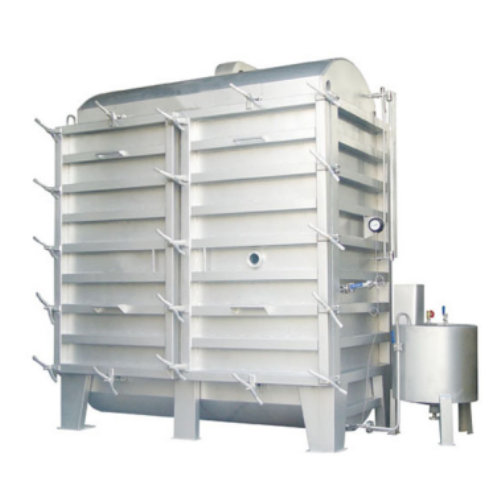

AS-Y Hank Yarn Dyeing Machine

AS-Y

Technical Parameters

-Maximum operating temperature: 98℃

-Temperature accelerating rate: 25℃-98℃ about 4℃/minute

(Saturated vapor pressure: Mpa 0.7)

(7kg/cm2dried satured steam manometer)

Model and Specifications

Model	General Power(KW)	Standard Form				Three layer model
		Capacity (kg)	L (mm)	W (mm)	H (mm)	Capacity (kg)	L(mm)	W (mm)	H (mm)
AS-Y-5	1.1	2.2	1235	820	1937
AS-Y-10	1.1	4.5	1235	900	1937
AS-Y-20	1.1	9	1400	1050	2080
AS-Y-30	2.25	14	1714	1125	2050
AS-Y-50	2.25	23	1714	1326	2050
AS-Y-100	2.95	45	2417	1357	2155
AS-Y-200	4.75	90	2830	1637	2210
AS-Y-300	5.5	140	2815	1590	3150	170	2815	1590	3410
AS-Y-400	7	185	2905	1880	3160	235	2905	1880	3420
AS-Y-600	9	275	3510	2178	3305	340	3510	2178	3565
AS-Y-800	12.5	360	3550	2490	3310	440	3550	2490	3570
AS-Y-1000	12.5	455	3775	2490	3310	550	3775	2490	3570
AS-Y-1200	13.5	545	3910	2760	3570	650	3910	2760	3830
AS-Y-1000X2	25	910	6935	2555	3310	1100	6935	2555	3570
AS-Y-1200X2	33	1090	7105	2830	3570	1300	7105	2830	3830
AS-Y-1000X4	47	1820	6935	5000	3310	2200	6935	5000	3570
