KS is suitable for puffing, refining, bleaching and dyeing cotton, wool, artificial wool, acrylic and blended yarn. I
also can be used for pre-treatment and after- treatment.
This Special Machine is designed to be low energy, low lift and larger quantity flowing. When working under high
temperature, It could keep it' S characteristic.
It' S three in one that concludes new model. It has low LR, which save materials and reduce the cost by way of
improving its structure.
Technical parameters
Design pressure : 0.44Mpa
Maximum working pressure : 0.4Mpa
Design temperature : 140°C
Maximum working temperature : 135°C
Heating rate : 20°C ~ 130°C about 35 minutes
( Saturated vapor pressure:0.7Mpa )
Cooling rate : 130°C ~ 80°C about 25 minutes
( Cooling water pressure:0.3Mpa )
Cooling water temperature : 5°C~ 10°C
Liquid ratio: 1 : 6 ~10

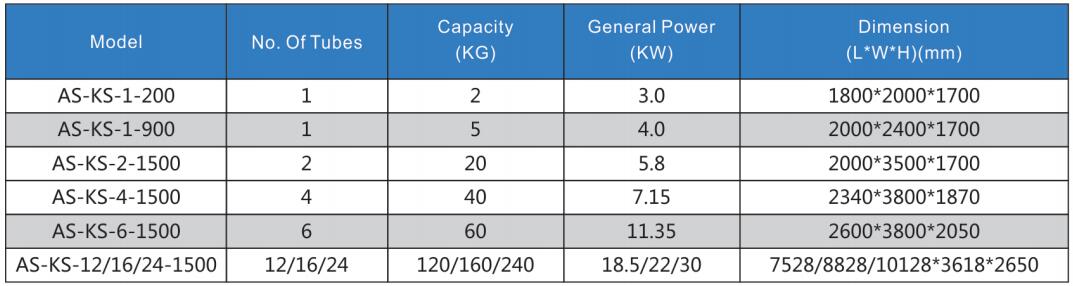

Model & Specifications
