Sprayed water flow comes into being high-pressure and high-speed flow, the water flow rate will up to 3kg/cm2.It is applied to dyeing non-splitting cloth such as High Count, New Synthetic Satin, Tricot, suede Fabric, peach-skin processing, TALON, TSCTEL, figured cloth BENGALINE, rib fabric, interlock XRib, poplin, fluting, crepe, meshfabric, oxford cloth, TAFFETA, middy twill and curled edge fabric, woven with T100, N100, T/C, CVC, T/R, N/C,N/T, N/R, R/T, CD/T/R and NC/TR, as well as union fabric interwoven and blended with various chemical fibersand long staple, cut fibers. Spraying during the proper range of 0.5 ~ 1kg/cm can be suitable for specially operating requirements of resilient fabric and low-tension fabric.
Technical parametersMaximum fabric speed : 600- 700m/min
Design pressure: 0. 44Mpa
Maximum working pressure : 0.4Mpa
Design temperature : 140°C
Maximum working temperature : 135°C
Heating rate: 20°C ~ 130°C about 35 minutes
( Saturated vapor pressure : 0.7Mpa )
Cooling rate: 130°C ~ 80°C about 25 minutes
( Cooling water pressure : 0.3Mpa , Cooling water Temperature : 5°C~ 10°C )
Liquor Ratio:can reach: 1:5-8

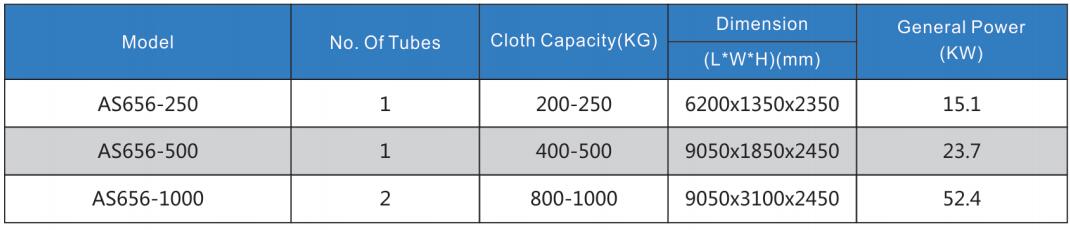

Model & Specifications
