Technical parameters AS631 is mainly suitable for dyeing woven fabrics such as natural or synthetic fibers, blended fibers (T/C, T/R, T/W), as well as high value-added microfibers and composite fibers.
Large capacity : Light and heavy fabric can operate smoothly.
Low liquor ratio : 1:6-1:8
Large Flow : Large flow nozzle can improve the uniform dyeing effect, High lift main pump provides high speed operation.
High Efficiency : with Special guide cloth equipment at the tail, Smooth the arrangement of the fabric, run smoothly, reduce the halt.

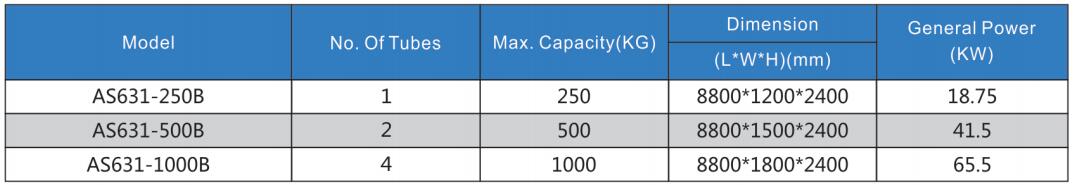

Model & Specifications
Maximum fabric speed : 600 700m/min
Design pressure: 0.44Mpa
Maximum working pressure : 0.4Mpa
Design temperature : 140°C
Maximum working temperature : 135°C
Heating rate: 20°C ~ 130°C about 35 minutes
( Saturated vapor pressure : 0.7Mpa )
Cooling rate: 130°C ~ 80°C about 25 minutes
( Cooling water pressure : 0.3Mpa , Cooling water Temperature : 5°C~10°C )
Liquor Ratio:can reach: 1:5-8
Model & SpecificationsMaximum fabric speed : 600 700m/min
Design pressure: 0.44Mpa
Maximum working pressure : 0.4Mpa
Design temperature : 140°C
Maximum working temperature : 135°C
Heating rate: 20°C ~ 130°C about 35 minutes
( Saturated vapor pressure : 0.7Mpa )
Cooling rate: 130°C ~ 80°C about 25 minutes
( Cooling water pressure : 0.3Mpa , Cooling water Temperature : 5°C~10°C )
Liquor Ratio:can reach: 1:5-8
