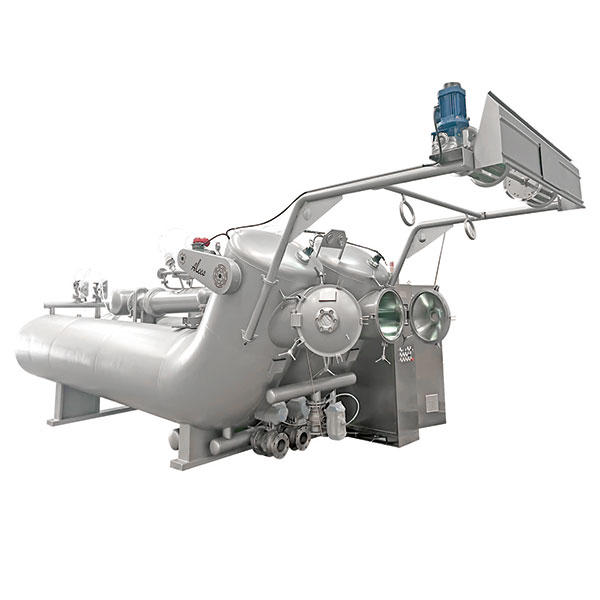

QR636 is suitable for dyeing the normal knitted fabric and elastic fabric, such as cotton elastic fabric, thread viscose elastic fabric, polyester elastic fabric,nylon elastic fabric and so on.Overflow jet flow are available, The suitable weight is from 50g/m to 600g/m Composite variable diameter type fabric guide tube: The tension can be minimized and effectively eliminate the function of warp crease.
The cloth groove is short, the cloth length is moderate, the liquor ratio is low, and the operation and maintenance are simple.
The height of the machine is low, the tension is low, the shrinkage rate after dyeing is small, and the weight of the finished product is easy to achieve.
The machine body is made of European or Japanese SUS316/316L highly corrosion-resistant grade A stainless steel.
High strength and high pressure machine body and heat exchanger. Sandblasting on the whole machine surface.
Technical parameters Design pressure: 0.44Mpa
Heating rate: 20°C ~ 130°C about 35 minutes
Maximum working pressure : 0.4Mpa ( Saturated vapor pressure : 0.7Mpa )
Cooling rate: 130°C ~ 80°C about 25 minutes
Design temperature : 140°C ( Cooling water pressure : 0.3Mpa , Cooling water Temperature : 5°C~10°C )
Maximum working temperature : 135°C
Liquor ratio: 1:5-8
Model & Specifications
