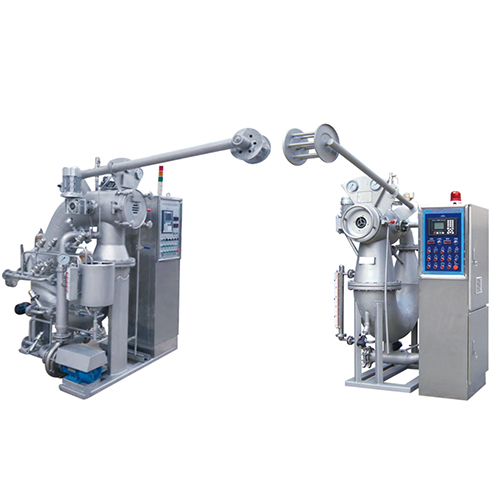

Machine body and all parts in contact with the dyeing liquid are made of highly corrosion-resistant stainless steel.
High efciency stainless steel centrifugal pump provides optimized dyeing liquid circulation. Lifting roller controlled by inverter. Dyestuff tank with dosing pump, valve, dyeing liquid circulation system.
Liquid level indicator equip with magnetic control water level sensing device.
High efficiency heat exchanger. Water inlet, discharge and flow cleaning are controlled by pneumatic valves.
Technical parameters Design pressure: 0.44Mpa
Heating rate: 20°C ~ 130°C about 35 minutes
Maximum working pressure : 0.4Mpa
( Saturated vapor pressure : 0.7Mpa )
Cooling rate: 130°C ~ 80°C about 25 minutes
Design temperature : 140°C
( Cooling water pressure : 0.3Mpa , Cooling water Temperature : 5°C~ 10°C )
Maximum working temperature : 135°C
Liquor ratio: 1:5-8

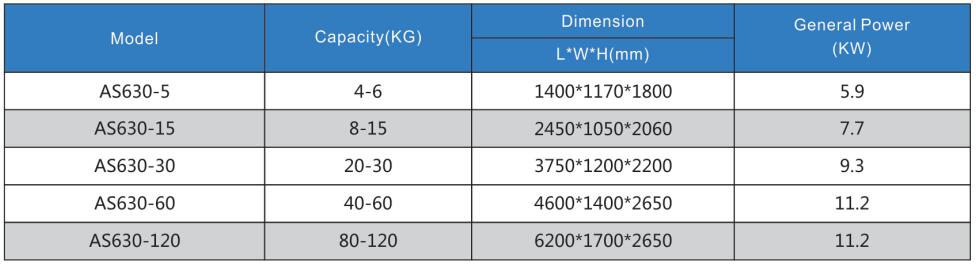

Model & Specifications
