perating principles

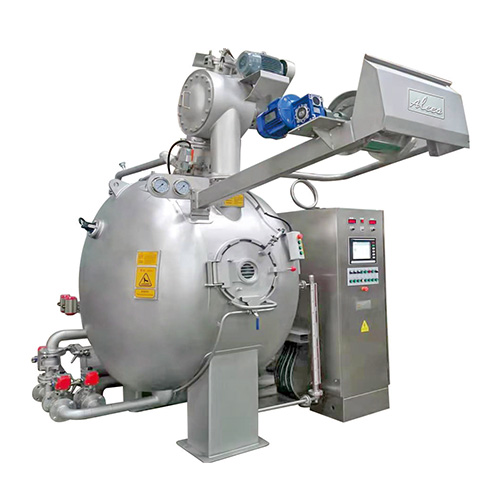

TEC-Muliflow high temperature air-liquid flow full mode dyeing machine (Pure air flow dyeing mode, pure liquid flow dyeing mode, airflow & liquid flow mixed dyeing mode) is a new generation with a wide range of suitable dyeing cloth, low production cost and first-class quality of dyed fabric. A carefully designed circulation system of aiflow and liquid flow superposition is used to make the fabric run smoothly at very low bath ratio 1:3. Fabric lifting system: the perfect fit of double stage nozzle and guide pipe makes the fabric running speed up to 400 m/min, suitable for dyeing process requirements of different fabrics.

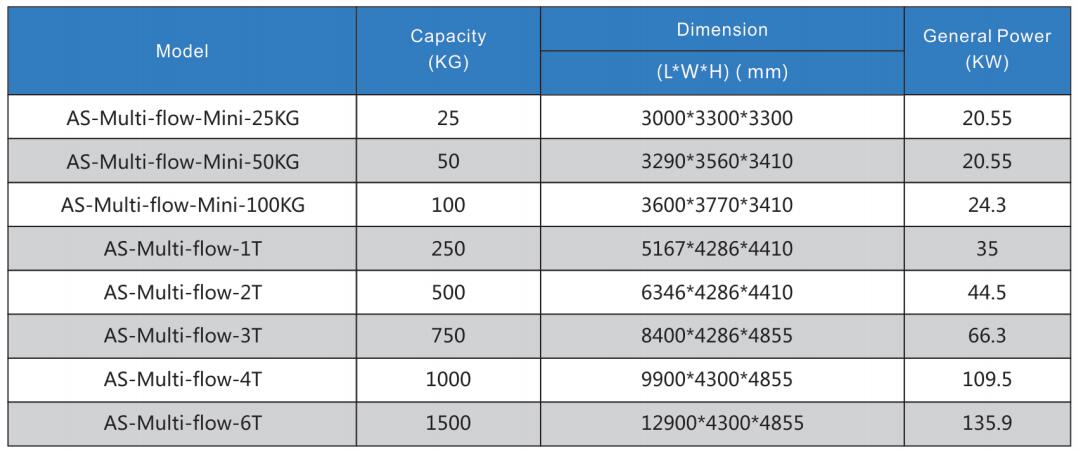

Model & Specifications
Model & SpecificationsLow water consumption per unit weight, reduced emissions, saved steam consumption,
Save sewage treatment fee, save pigment and auxiliary dosage.
2. Save steam
Reduce heat consumption, very low water ratio 1:3.
3. Power saving
Main pump motor soft start with frequency converter.
4. Reduction of Pigments and Additives
Reduce sewage discharge and play an environmental role.
5. Constant water ratio
Each tube can maintain a dyeing water ratio of 1:3 in the range of 70~ 100% load, and the fabric can run smoothly.
6. Wide range of adaptation
Can meet the dyeing requirements of different grams of weight and width fabrics, and ensure 3 minutes without
load reduction Complete a cycle cycle.
7. Reduce production costs
Save water, steam and electricity, reduce investment in sewage treatment.
