Technical parametersAS666 is mainly suitable for dyeing woven fabrics such as natural or synthetic fibers, blended fibers (T/C, T/R, T/W),
as well as high value-added microfibers and composite fibers.
Large capacity : Light and heavy fabric can operate smoothly.
Low liquor ratio : 1:6-1:8
Large Flow : Large flow nozle can improve the uniform dyeing effect, High lift main pump provides high speed operation.
High Efficiency : with Special guide cloth equipment at the tail, Smooth the arrangement of the fabric, run smoothly,
reduce the halt.
● Maximum fabric speed : 600- 700m/min
● Heating rate : 20°C ~ 130°C about 35 minutes ( Saturated vapor pressure : 0.7Mpa )
● Design pressure : 0.44Mpa
● Maximum working pressure : 0.4Mpa
● Cooling rate : 130°C ~ 80°C about 25 minutes ( Cooling water pressure : 0.3Mpa , Cooling water Temperature: 5°C~ 10°C)
● Design temperature : 140°C
● Maximum working temperature : 135°C
● Liquor Ratio:can reach : 1:5-8
● Heating rate : 20°C ~ 130°C about 35 minutes ( Saturated vapor pressure : 0.7Mpa )
● Design pressure : 0.44Mpa
● Maximum working pressure : 0.4Mpa
● Cooling rate : 130°C ~ 80°C about 25 minutes ( Cooling water pressure : 0.3Mpa , Cooling water Temperature: 5°C~ 10°C)
● Design temperature : 140°C
● Maximum working temperature : 135°C
● Liquor Ratio:can reach : 1:5-8

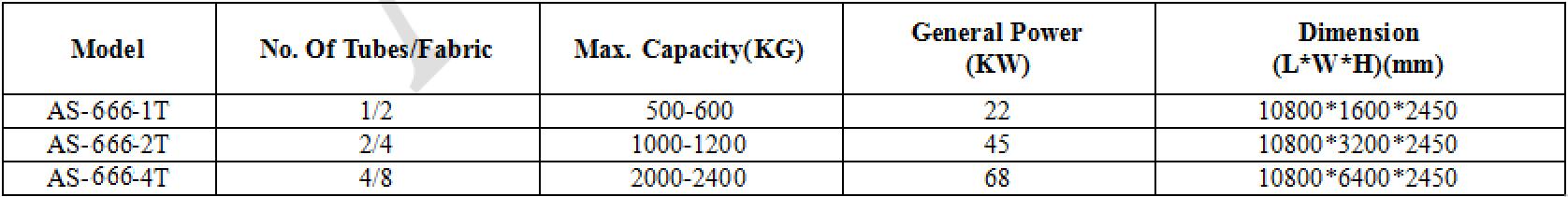

Model & Specifications
